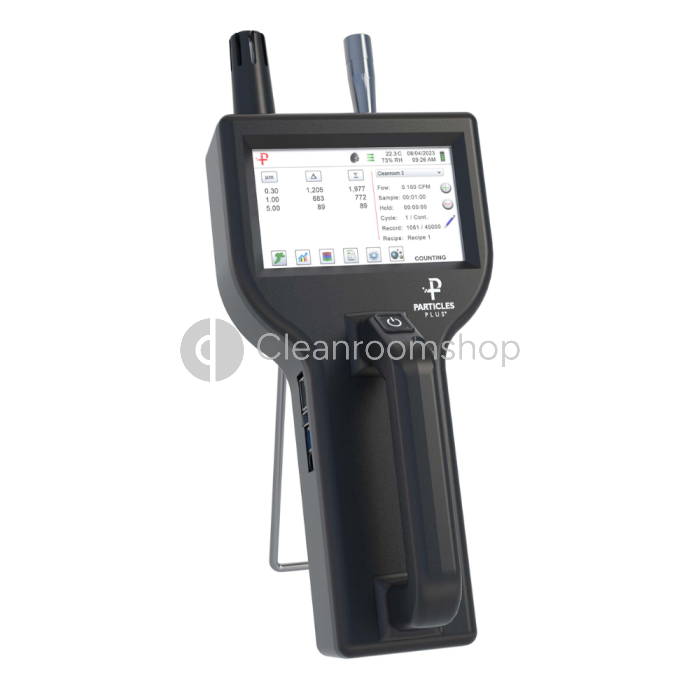

Particles Plus 8306 6 Channel H/Held Particle Counter + WIFI

8306 with Standard Calibration

Particle sizes 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm
Calibration of custom particle sizes available upon request

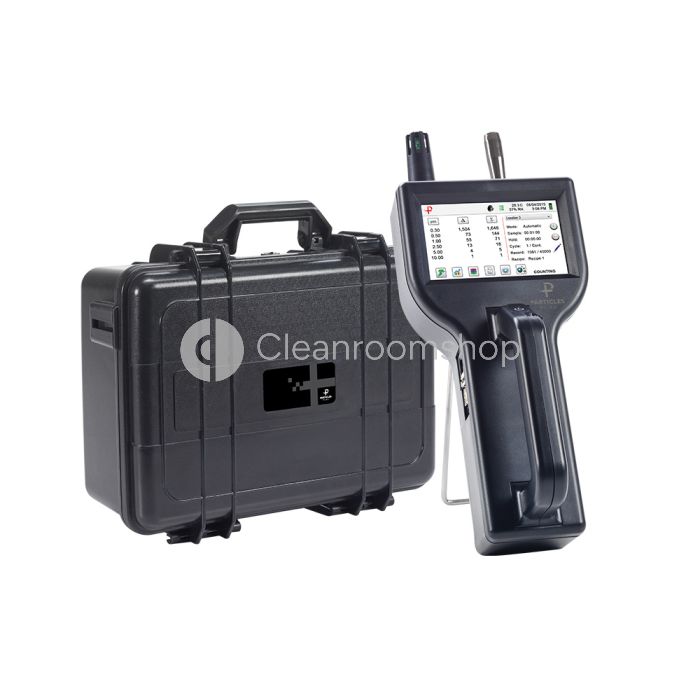

Case and accessory pack included
Ongoing calibration service available providing you peace of mind, the unit remains compliant according to ISO 21501-4
Free yearly calibration reminder service available. Email service@connect2cleanrooms.com

Calibration Offer

Connect 2 Cleanrooms has the only UK-based Particles Plus calibration laboratory. Ongoing calibration will ensure the unit is trusted to perform accurately and remains compliant to ISO 21501-4.
We offer a 10% discount on your first annual calibration, when booked within 30 days of purchase. Please email service@connect2cleanrooms.com for more details.
Free yearly calibration reminder service available. Contact us about our particle counter rental service.

Accessory Kit (included)

Isoprobe Threaded 0.1 CFM (2.83 LPM) Nickel Plated Aluminum
Purge Filter Assembly 0.1 CFM (2.83 LPM)
Rechargeable Battery 55Wh - Greater than 10 hour battery life
Temperature / RH Probe 32-140°F (0-60°C) ±1°F (0.5°C), 0-100% ±2%
Power Supply 15V ~2amp 100-240VAC (Select adapter -US, -EU, -UK or -CN)
USB Cable 6' (1.8m)
Calibration Certificate
Quick Start Guide
User Manual and Instrument Management Software (USB Key)
Supplied with UK plug (US, EU, CN optional – please enquire)

Why Choose 8306 6 Channel Handheld Particle Counter?

Pinpoints contamination sources quickly with visual and audible indicators
Available with Modbus and WIFI capability - allowing flexibility for live streaming of data
IP addressable, network capable, patented with real time meter
Icon driven touch screen interface
The Particles Plus 8306 Handheld Particle Counter measures 0.3 μm to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM)
Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity
View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via (optional) printer, USB key, real-time through its versatile output options or export to Particles Plus data-download software
Particles Plus counters can be controlled and monitored remotely via web browser. The 8306 has a mass concentration mode that approximates density in μg/m³

Benefits of WIFI

Promotes the ability to monitor remotely from your computer, smart device with a web browser or IMS integrated software, reducing the amount of contact and personnel involved in monitoring cleanroom performance (WIFI range)
Longest battery life available at 10.5hrs which supports non-stop production on 1 x charge
Efficient functionality to save time with easy to configure formula’s, date extract and also being able to download data whilst continuing to take particle counts
Easy to configure and record different sizes of micron confirming HEPA filtration maintains performance to agreed classification
The ability to pinpoint particular contamination sources, saving time and enabling quick troubleshooting potential

Special Delivery Details

Particle counters require calibration in our calibration lab before they can be shipped. If you require your particle counter on next-day delivery, please place your order by 12noon to ensure calibration can be completed same-day.

Brand	Particles Plus
Type	Handheld
Lead time (if out of stock)	10-15 days
Pack Size	1
Applications	For cleanroom monitoring through airborne particle counting the 3 channel particle counter is easy to use, with versatile output options.
Country of origin	USA
Technical data	Most advanced multi-processor on the market for simultaneous operations WIFI Greater than 10 hour battery life with idle mode 8303 with Standard Calibration: 0.3, 0.5, 1.0, 2.5,5.0, 10.0 m Custom size calibration (optional extra - please enquire) New Instant Management Software (IMS). Able to download to PC, remote diagnostics, sensor calibration and real time data Ethernet, optional WiFi, MODBUS ASCII od TCP Hard plastic enclosure
Sterility	Non-Sterile
Warranty	2 year warranty (6 months warranty only for the internal pumps)
Channel	6 Channel
Calibration	Units are supplied calibratied and ongoing yearly calibration is available from Cleanroomshop's in -house lab. 10% off your first calibration with every purchase.

Brand

Particles Plus

Type

Handheld

Lead time (if out of stock)

10-15 days

Pack Size

Applications

For cleanroom monitoring through airborne particle counting the 3 channel particle counter is easy to use, with versatile output options.

Country of origin

USA

Technical data

Most advanced multi-processor on the market for simultaneous operations
WIFI Greater than 10 hour battery life with idle mode
8303 with Standard Calibration: 0.3, 0.5, 1.0, 2.5,5.0, 10.0 m
Custom size calibration (optional extra - please enquire)
New Instant Management Software (IMS). Able to download to PC, remote diagnostics, sensor calibration and real time data
Ethernet, optional WiFi, MODBUS ASCII od TCP
Hard plastic enclosure

Sterility

Non-Sterile

Warranty

2 year warranty (6 months warranty only for the internal pumps)

Channel

6 Channel

Calibration

Units are supplied calibratied and ongoing yearly calibration is available from Cleanroomshop's in -house lab. 10% off your first calibration with every purchase.
